ViCage

Interbody fusion cage set.
Ten sizes. One set.

A gyroid lattice core in Ti6Al4V ELI, produced by Additive Manufacturing. Five footprints, two heights each, one inserter.

Plan an order See the sizes
ViCage cage, size 6 - 13x10, in raw titanium: gyroid lattice core visible through the graft window, serrated endplate faces and the inserter port on the side
Material
Ti6Al4V ELI
Process
Additive Manufacturing
Core
Gyroid lattice
Range
4.5–7.5 mm, 10 sizes
Design

Three details that define the cage

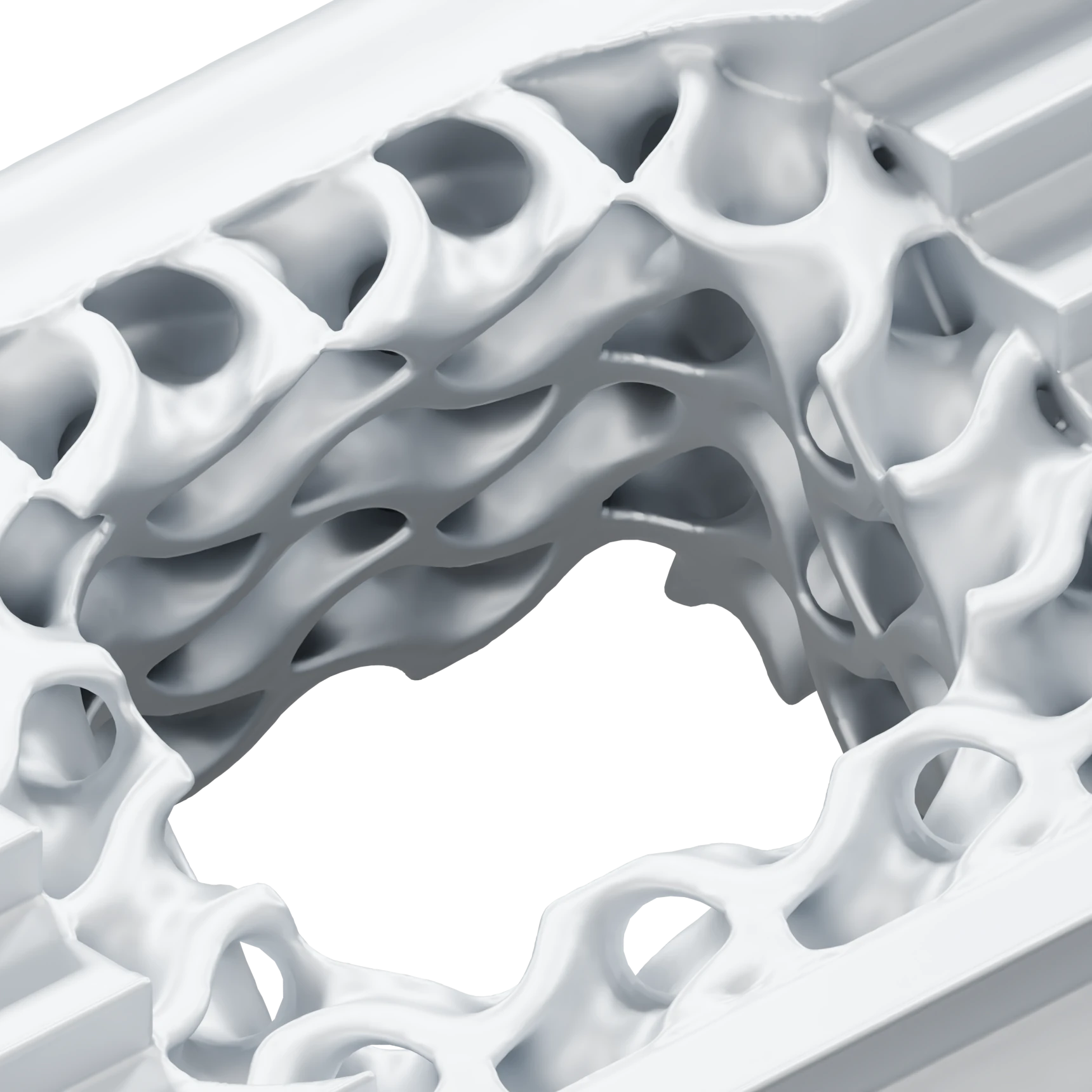

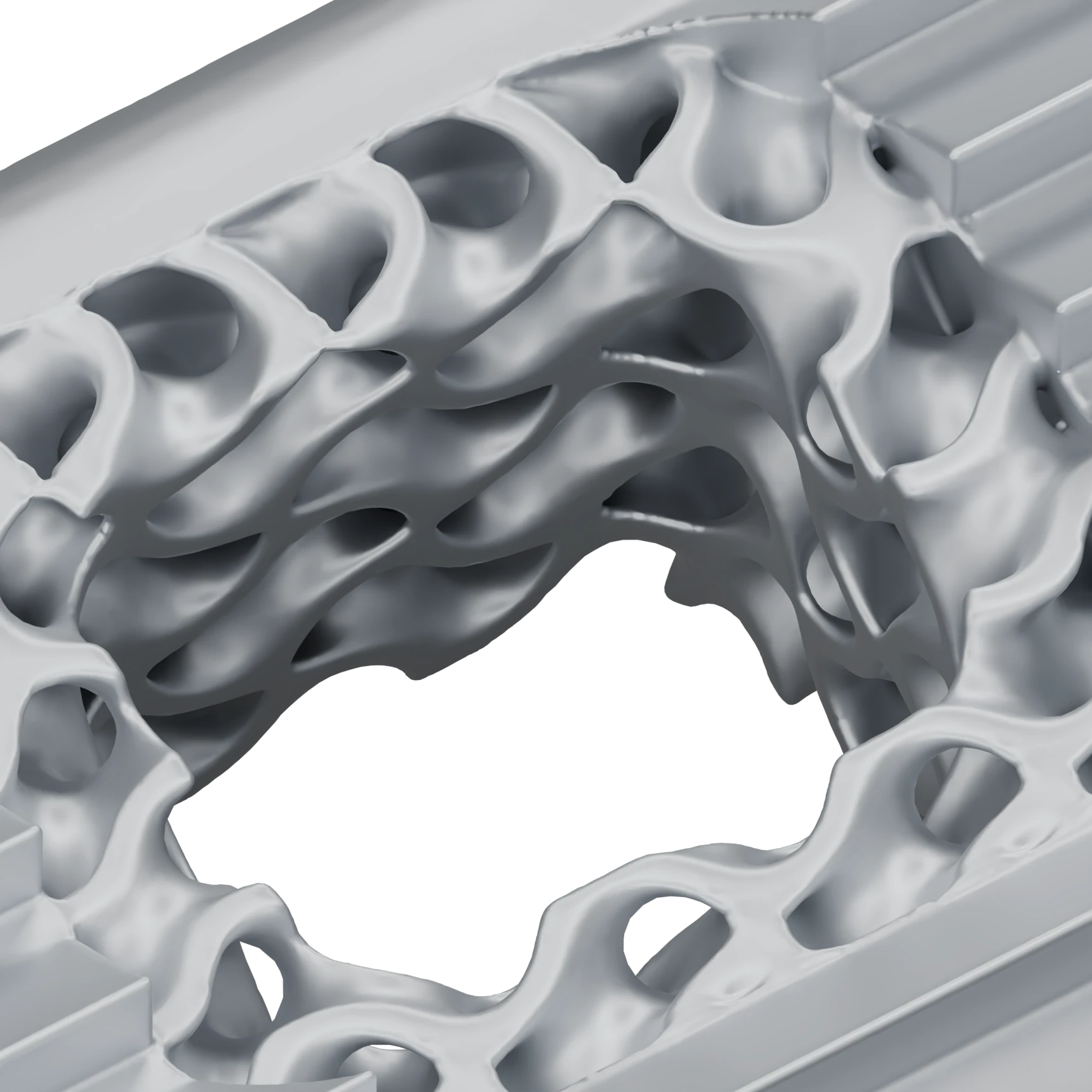

Close-up of the gyroid lattice core seen through the graft windowClose-up of the gyroid lattice core seen through the graft window
01

Gyroid lattice core

Open graft window through both endplate faces.

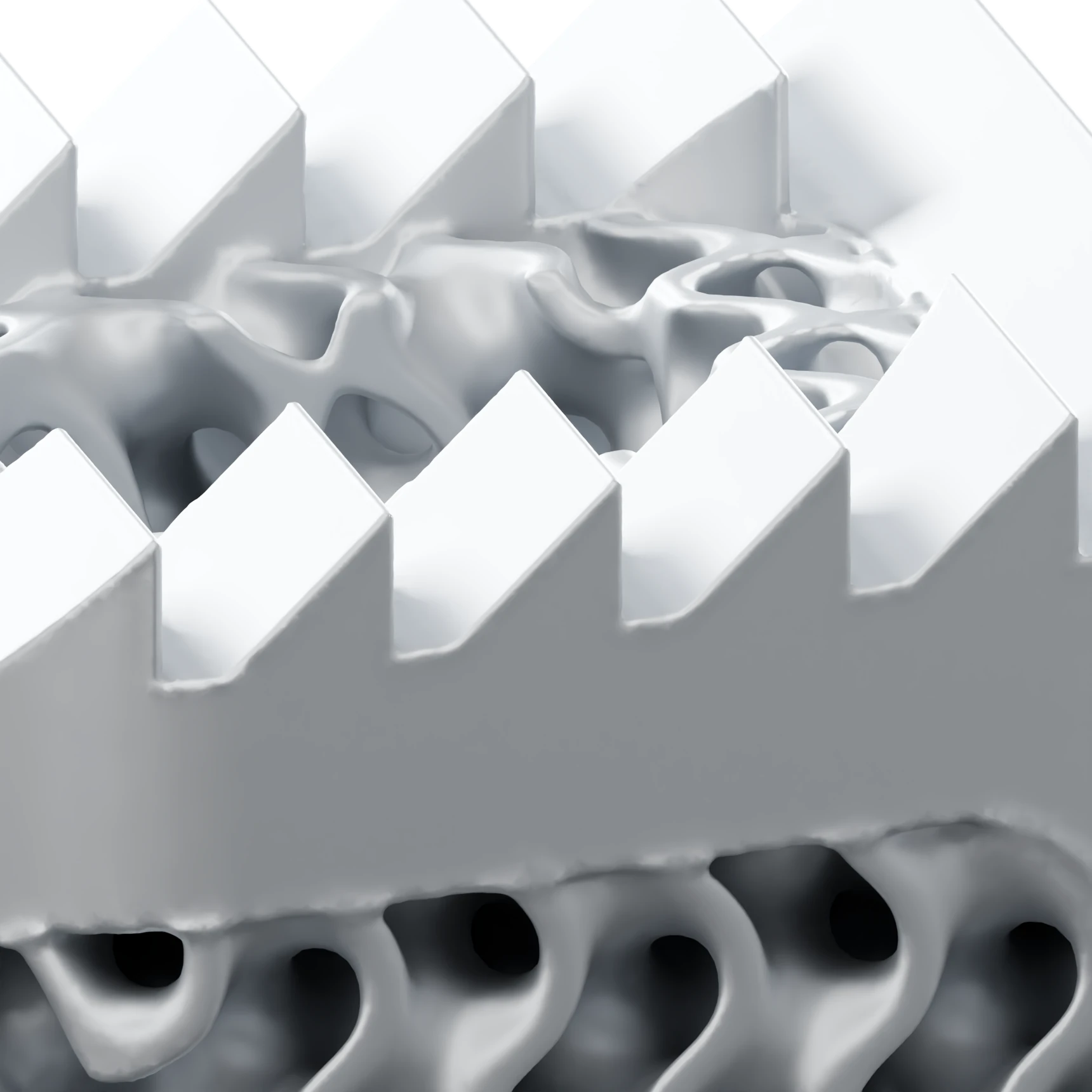

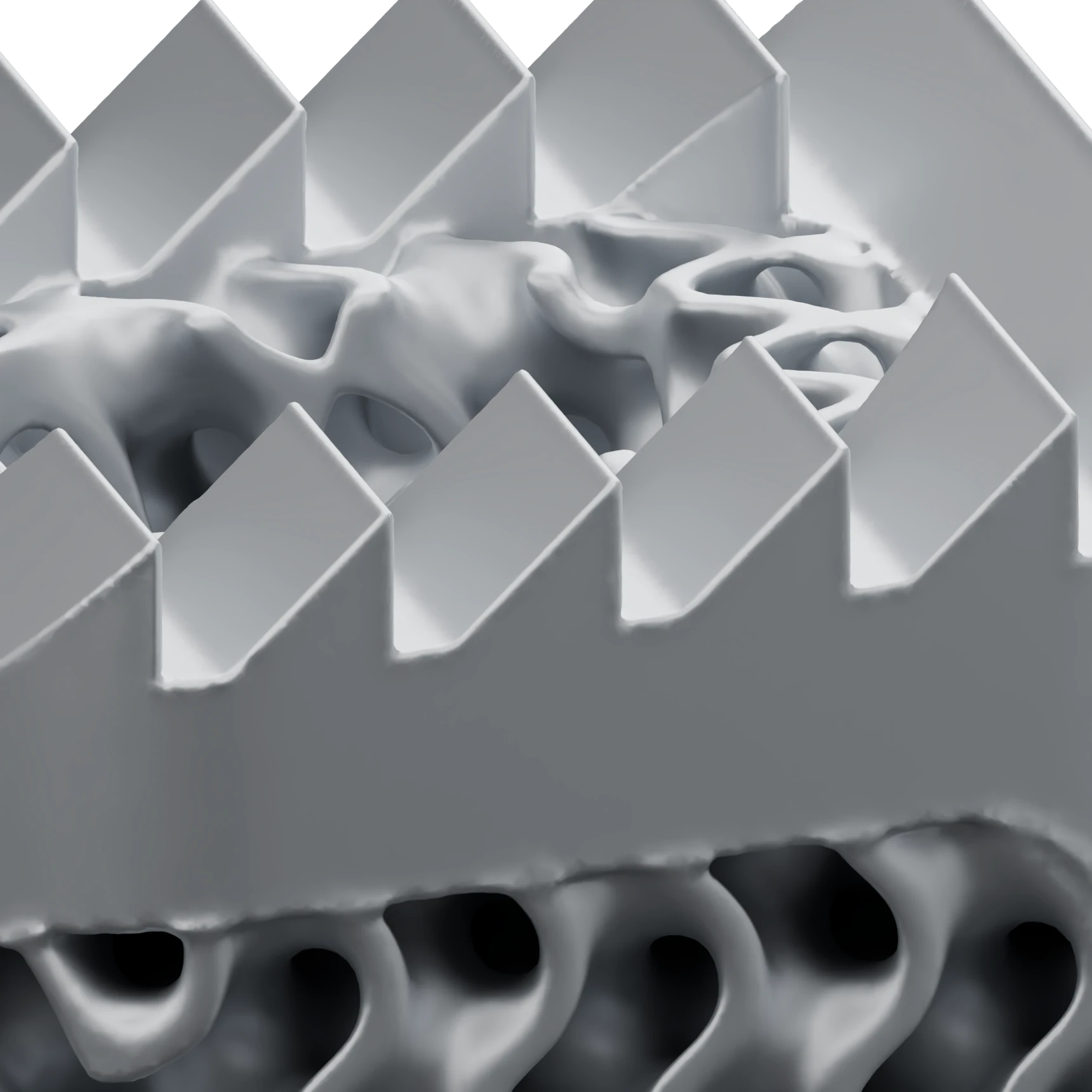

Close-up of the parallel serration ridges on an endplate faceClose-up of the parallel serration ridges on an endplate face
02

Serrated endplate faces

Parallel ridges on both endplate faces.

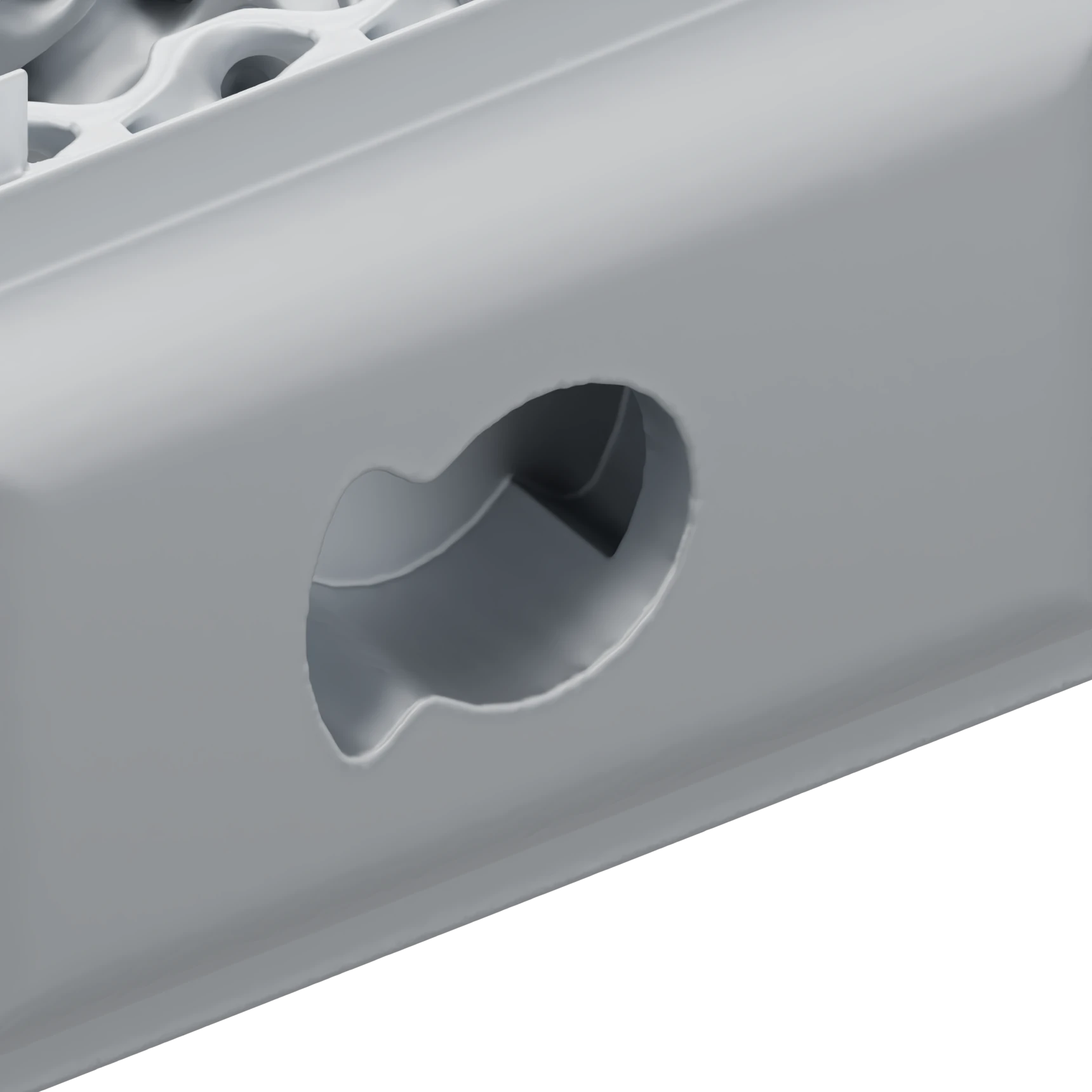

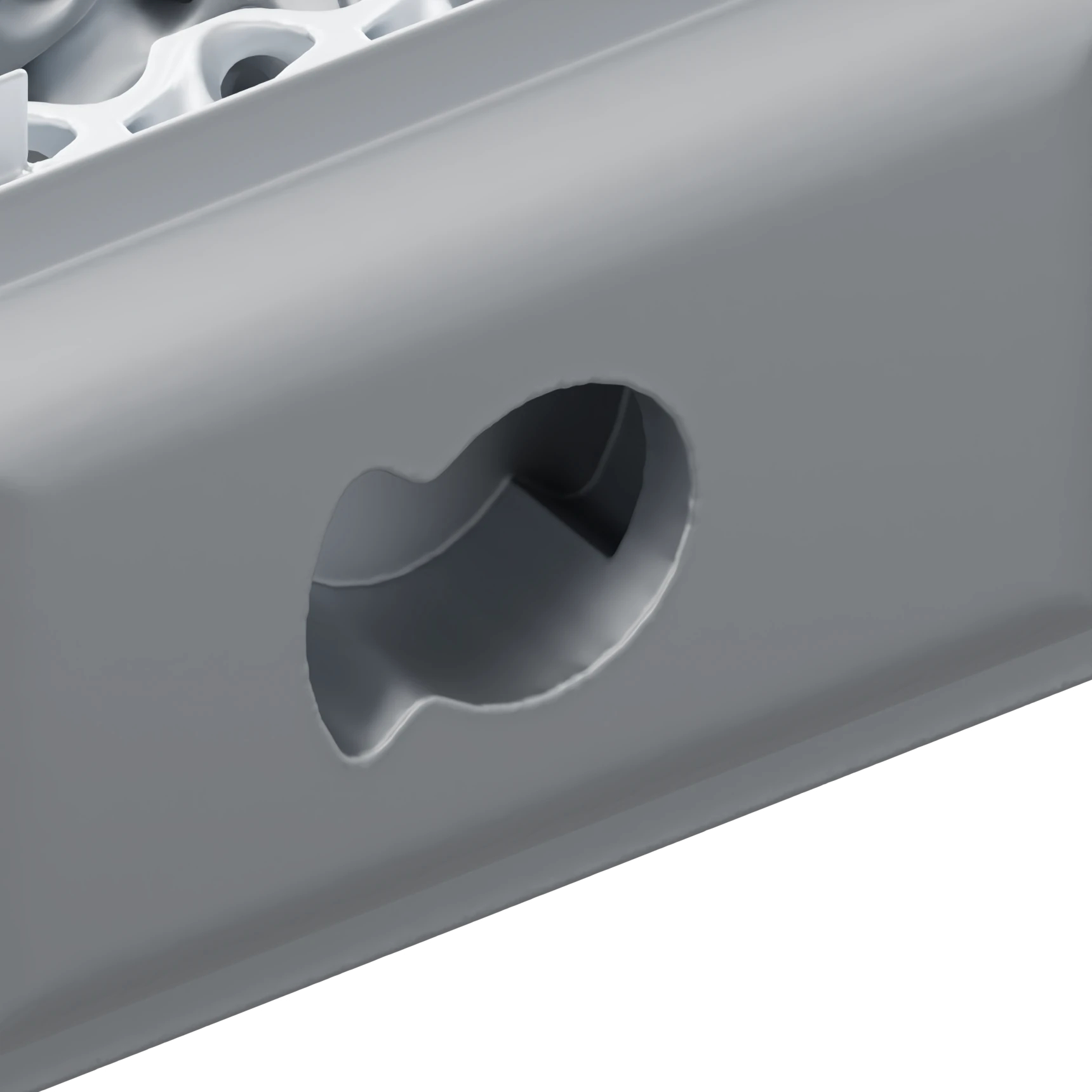

Close-up of the keyed inserter port on the side of the cageClose-up of the keyed inserter port on the side of the cage
03

Keyed inserter port

Keyed shape for the ViCage inserter.

Sizes

Ten sizes. One set.

Five footprints, each in two heights. The whole set is shown from above at one scale.

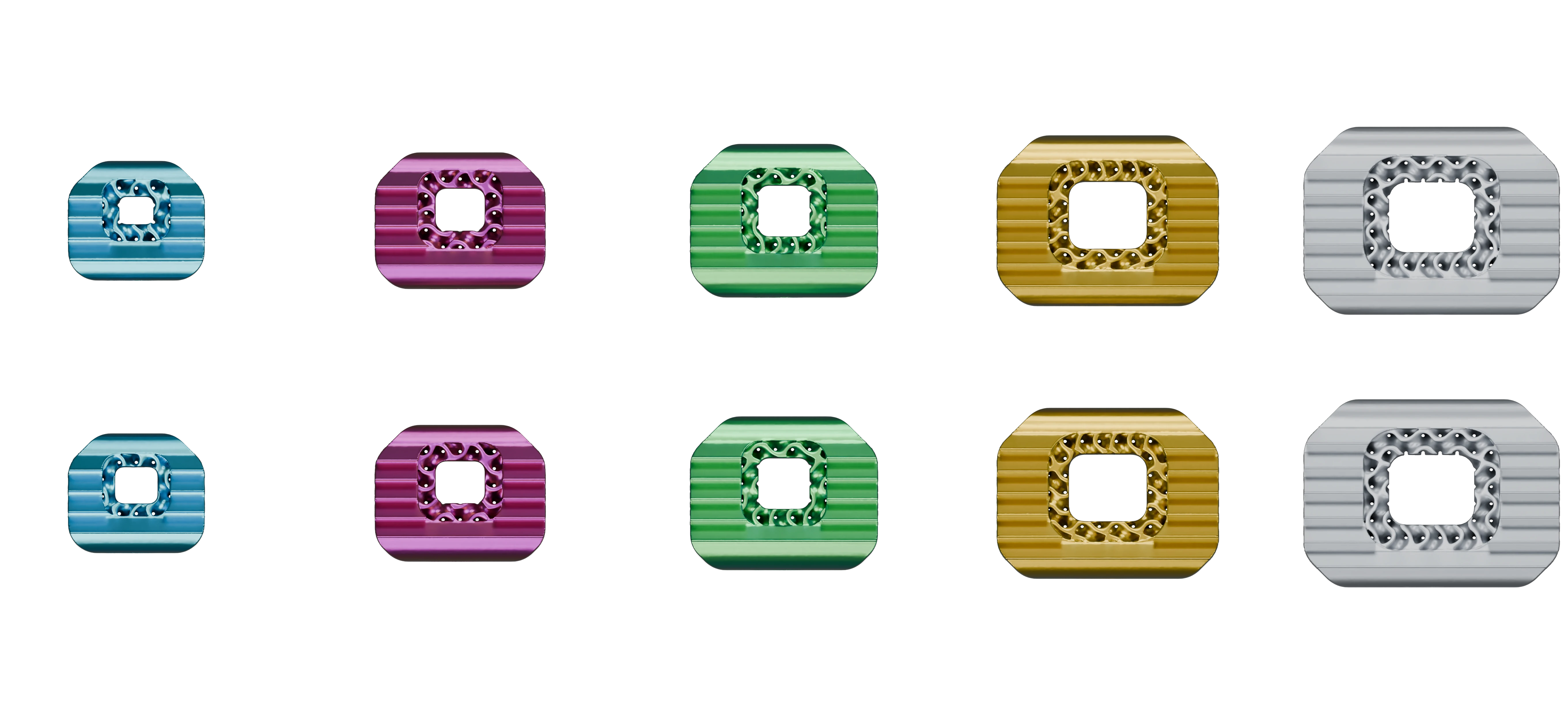

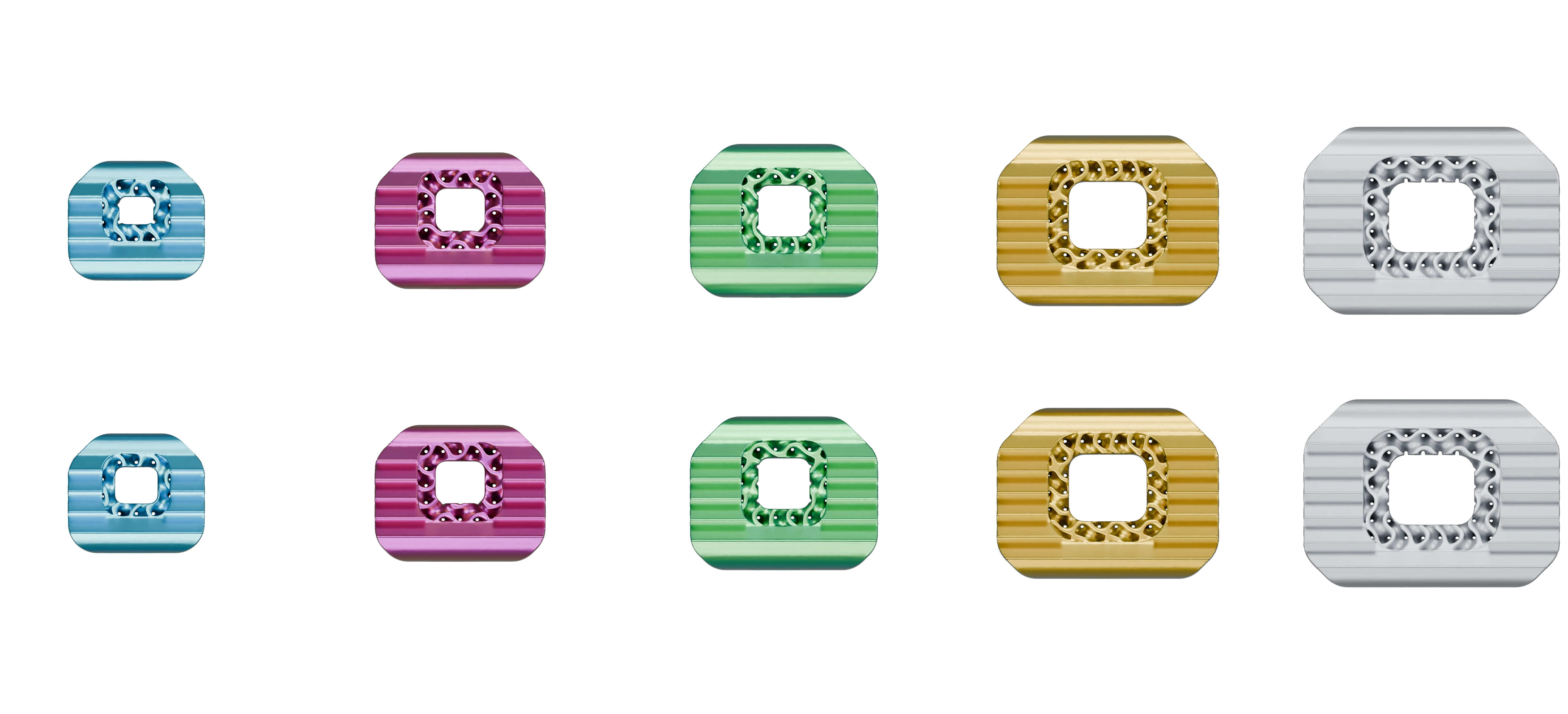

All ten ViCage sizes seen from above at one scale: five footprints in columns, two heights per footprintAll ten ViCage sizes seen from above at one scale: five footprints in columns, two heights per footprint4.5 mmVC-0807-0455.5 mmVC-0807-0555 mmVC-1008-0506 mmVC-1008-0605.5 mmVC-1109-0556.5 mmVC-1109-0656 mmVC-1310-0607 mmVC-1310-0706.5 mmVC-1511-0657.5 mmVC-1511-075
8×710×811×913×1015×11
Top view, all sizes at one scale. Footprint in mm, length × width.
ViCage size table
Reference codeFootprint
length × width (mm)		Height
(mm)		Overall height
over ridges (mm)
VC-0807-0458 × 74.56.0
VC-0807-0558 × 75.57.1
VC-1008-05010 × 856.5
VC-1008-06010 × 867.5
VC-1109-05511 × 95.57.0
VC-1109-06511 × 96.58.0
VC-1310-06013 × 1067.6
VC-1310-07013 × 1078.6
VC-1511-06515 × 116.58.1
VC-1511-07515 × 117.59.1

Size names read height - footprint, for example 6 - 13x10. Overall height is measured from the production CAD data.

Instrument

ViCage inserter

The inserter tip is keyed to the port on the cage. Length 150 mm. Reference code VC-INS-150.

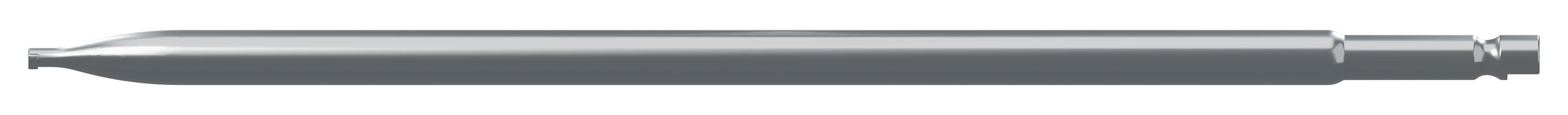

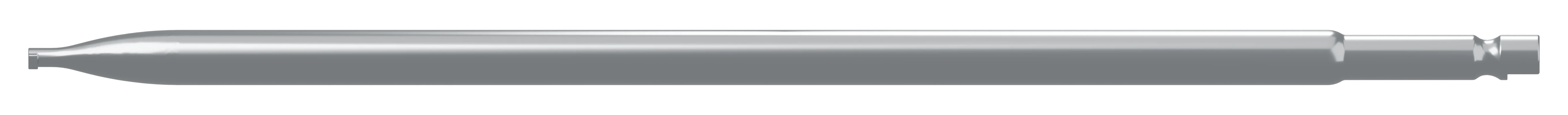

ViCage inserter, 150 mm, shown horizontallyViCage inserter, 150 mm, shown horizontally
Reference codes

How to read a ViCage code

Every part in the set carries one reference code. Use it on orders and in your surgical notes.

VCViCage family
–
1310Footprint 13 × 10 mm
length, width
–
060Height 6.0 mm
in tenths of a millimetre

Instruments use a word in place of the footprint: VC-INS-150 is the 150 mm inserter.

Order

Plan an order

Choose sizes and quantities. The page prepares an order request for you to send by email. We reply with availability, price and delivery.

Reference codeFootprint (mm)Height (mm)Quantity
VC-0807-0458 × 74.5
VC-0807-0558 × 75.5
VC-1008-05010 × 85
VC-1008-06010 × 86
VC-1109-05511 × 95.5
VC-1109-06511 × 96.5
VC-1310-06013 × 106
VC-1310-07013 × 107
VC-1511-06515 × 116.5
VC-1511-07515 × 117.5
VC-INS-150ViCage inserter, 150 mm

Your request

No items yet. Set a quantity in the table.
Send the request by email

The request goes to info@vimics.vet. Nothing is ordered until we confirm it with you.
